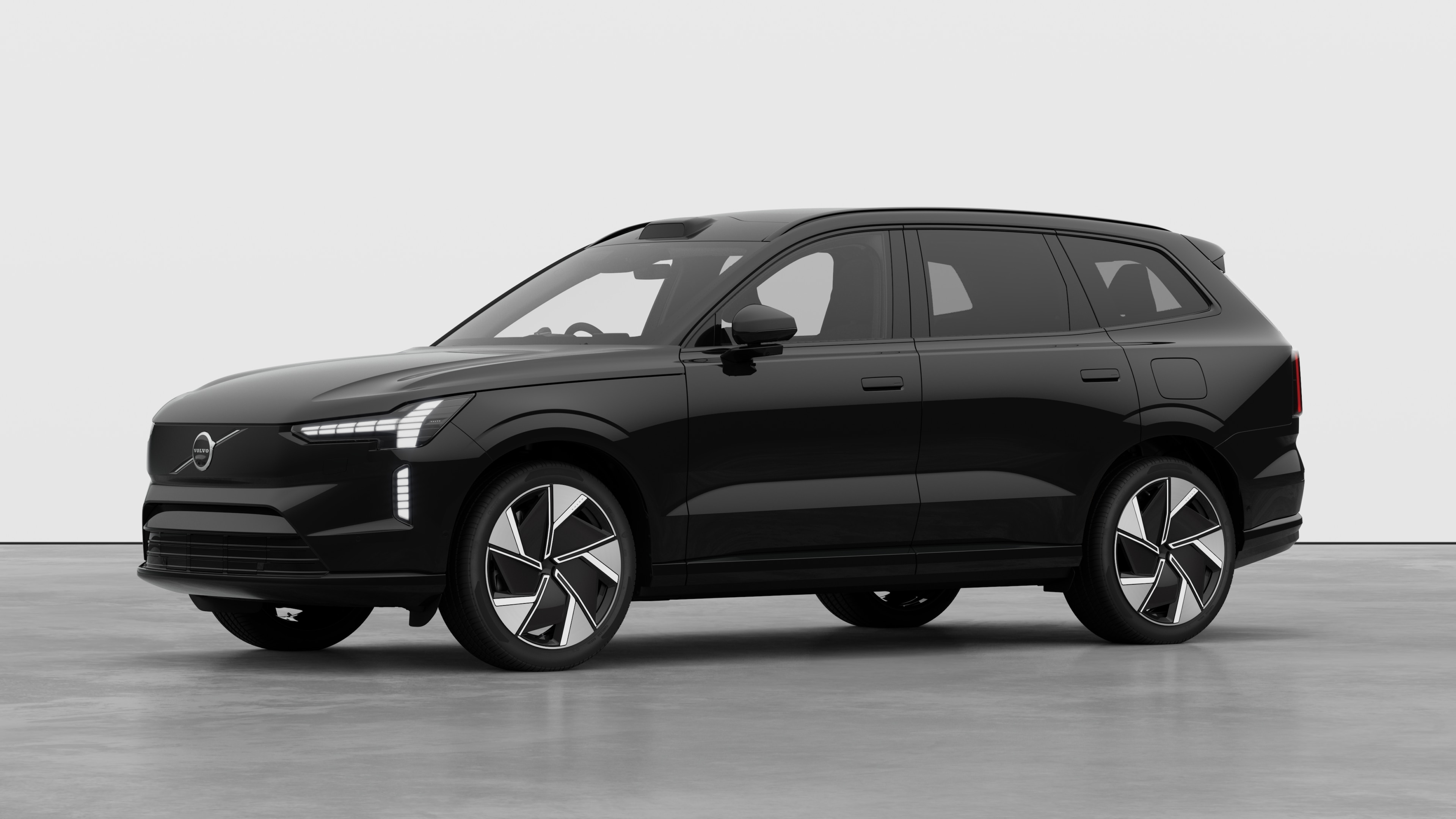

Explore EX90 specifications
Powertrain options. Key dimensions. Standard features and upgrades. All you need to find the right Volvo car for you.
Platform
Platform
- Fuel Type
- Electric
- Driveline
- AWD
- Transmission
- Automatic
- Electrical system
- 800 V
- Number of seats
- 7
- Weight (Running Order Mass)
- 2 764 kg
- Weight (Max Laden Mass)
- 3340 kg
- Trailer max weight
- 2 200 kg
- Roof load max weight
- 100 kg
Performance
- Electric Range
- Up to 521 km
- Electric energy consumption combined (NEDC)
- 22.8 kWh/100km
- Power
- 330 kW / 442 hp
- Max torque
- 670 Nm
- 0-100 km/h
- 5.5 s
- Top speed
- 180 km/h
- Environmental Classification
- Euro6e
Charging
- Battery energy (nominal)
- 106 kWh
- Battery charging duration 0-100% (3-phase 16A)
- 11 h
- Battery charging duration 10-80% (DC 300kW)
- 24 min
- Fuel Type
- Electric
- Driveline
- AWD
- Transmission
- Automatic
- Electrical system
- 800 V
- Number of seats
- 7
- Weight (Running Order Mass)
- 2 764 kg
- Weight (Max Laden Mass)
- 3340 kg
- Trailer max weight
- 2 200 kg
- Roof load max weight
- 100 kg
- Electric Range
- Up to 521 km
- Electric energy consumption combined (NEDC)
- 22.8 kWh/100km
- Power
- 500 kW / 680 hp
- Max torque
- 870 Nm
- 0-100 km/h
- 4.2 s
- Top speed
- 180 km/h
- Environmental Classification
- Euro6e
- Battery energy (nominal)
- 106 kWh
- Battery charging duration 0-100% (3-phase 16A)
- 11 h
- Battery charging duration 10-80% (DC 300kW)
- 24 min
Features and upgrades
Equipment level
Category
Not included
Optional
Included
Car dimensions
Exterior
- Vehicle height at kerb weight with one person
- 1 744 mm
- Width (mirrors incl)
- 2 113 mm
- Front track width
- 1 672 mm
- Width
- 1 964 mm
- Width (mirrors folded)
- 2 039 mm
- Rear track width
- 1 666 mm
- Vehicle length
- 5 037 mm
- Wheel base
- 2 985 mm
- Turning circle
- 12 m
Interior
- Head room front with panoramic roof
- 1 075 mm
- Shoulder room rear
- 1 467 mm
- Hip room front
- 1 422 mm
- Head room rear with panoramic roof
- 1 056 mm
- Leg room front
- 1 039 mm
- Hip room rear
- 1 434 mm
- Shoulder room front
- 1 475 mm
- Leg room rear
- 926 mm
Storage
- Cargo floor width between wheel housing
- 1 130 mm
- Third seatback to tailgate top of third seatback
- 378 mm
- First seatback to tailgate - top of first seatback
- 1 909 mm
- Cargo capacity (max) - third row up
- 384 l
- Cargo capacity (max) - second row up
- 1 057 l
- Cargo capacity (max) - rows folded
- 2 135 l
- Cargo capacity (front)
- 46 l
