Explore XC90 specifications
Powertrain options. Key dimensions. Standard features and upgrades. All you need to find the right Volvo car for you.

Platform
Platform
- Fuel Type
- Electric/Petrol
- Driveline
- AWD
- Transmission
- Automatic
- Number of seats
- 7
- Weight (Max Laden Mass)
- 2950 kg
- Trailer max weight
- 2 400 kg
Performance
- Electric Range
- Up to 77 km
- Electric energy consumption combined (NEDC)
- 26.7 kWh/100km
- Fuel Consumption Weighted (Combined)
- 1.8 l/100km
- Fuel Capacity
- 71 l
- Power
- 340 kW / 462 hp
- Max torque
- 709 Nm
- 0-100 km/h
- 5.3 s
- Top speed
- 180 km/h
- Emissions CO₂ (Combined)
- 40 g/km
Charging
- Battery energy (nominal)
- 19 kWh
- Battery charging duration 0-100% (2-phase 16A)
- 3 h
Car dimensions
Exterior
- Vehicle height at kerb weight with one person
- 1 767 mm
- Width (mirrors incl)
- 2 140 mm
- Front track width
- 1 665 mm
- Width
- 1 931 mm
- Width (mirrors folded)
- 2 008 mm
- Rear track width
- 1 667 mm
- Vehicle length
- 4 953 mm
- Wheel base
- 2 984 mm
- Turning circle
- 12 m
Interior
- Max head room front
- 1 051 mm
- Shoulder room rear
- 1 435 mm
- Hip room front
- 1 422 mm
- Head room rear
- 997 mm
- Leg room front
- 1 038 mm
- Hip room rear
- 1 435 mm
- Shoulder room front
- 1 465 mm
- Leg room rear
- 940 mm
Storage
- Cargo floor width between wheel housing
- 1 130 mm
- Second seatback to tailgate - top of second seatback
- 1 040 mm
- First seatback to tailgate - top of first seatback
- 1 903 mm
- Cargo capacity (max) - third row up
- 298 l
- Cargo capacity (max) - second row up
- 977 l
- Cargo capacity (max) - rows folded
- 1 941 l

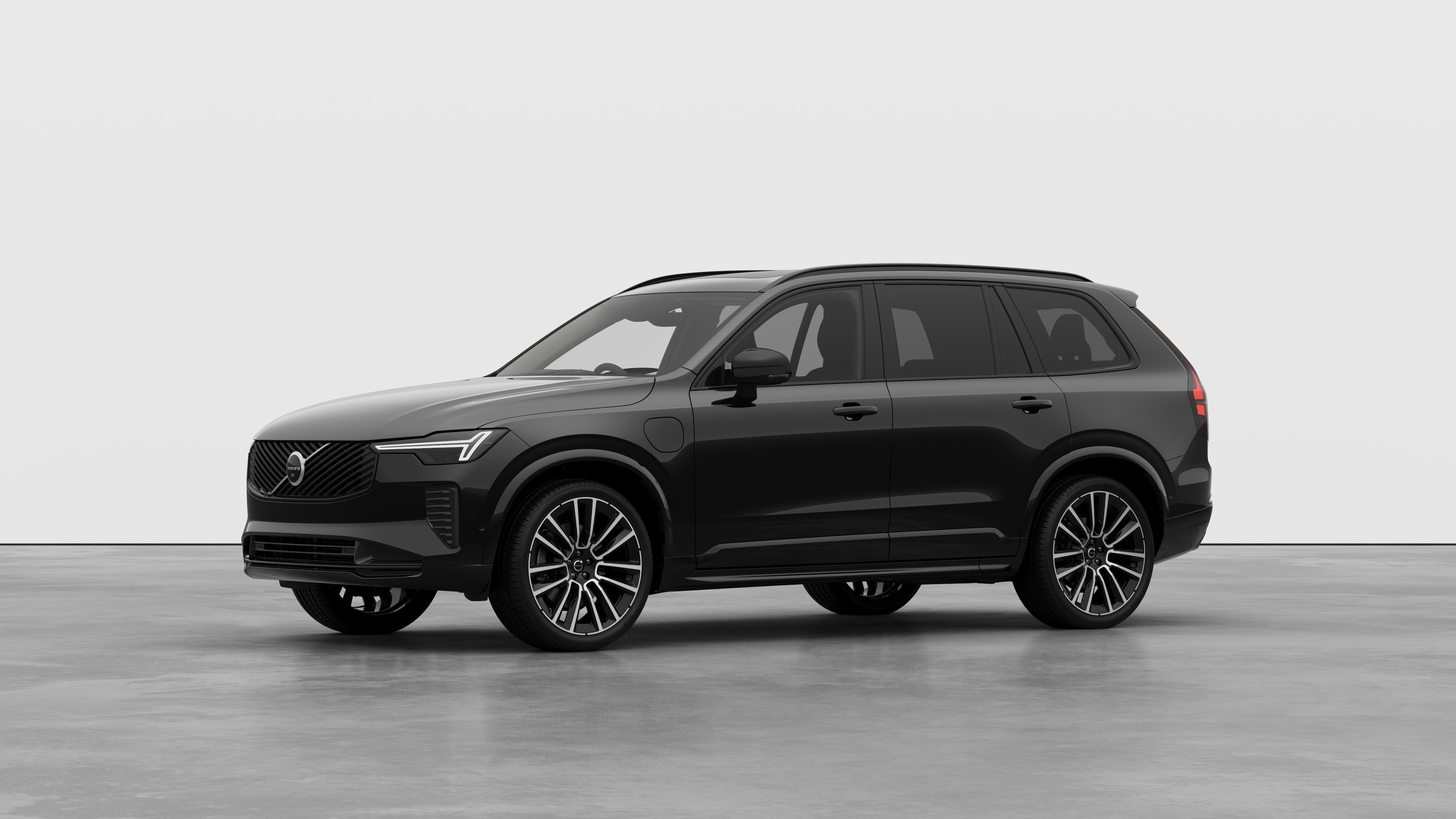

Overseas model shown, exterior trim featured is not available in Australia. Information and photographs on this website may include overseas models and features not available in Australia. Please confirm exact specifications, features and availability with your local Volvo retailer.
