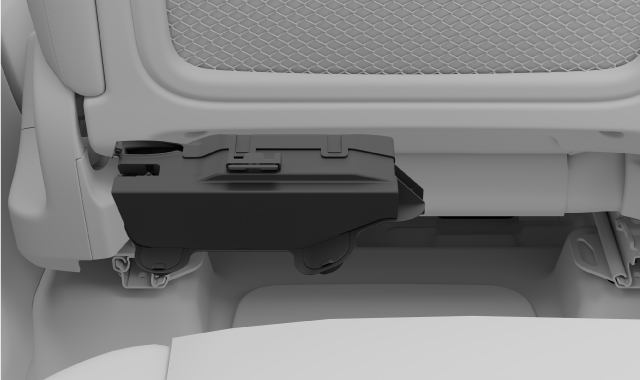

To access the fuses you need to unclip the box lid.

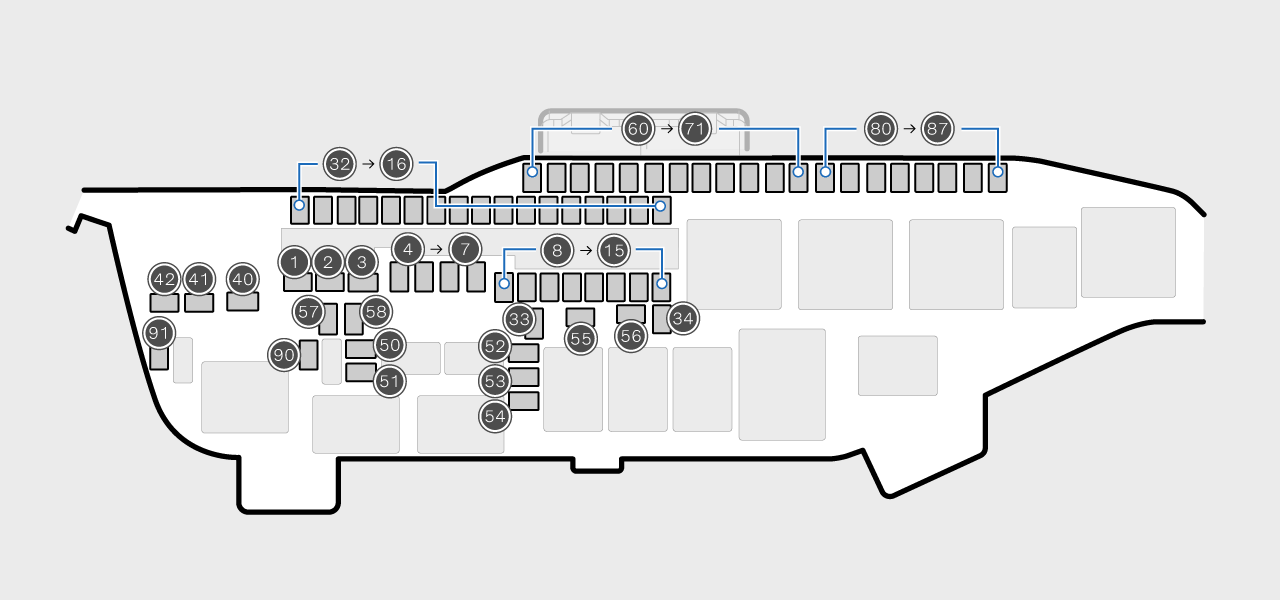

| Number | Feature | Ampere | Type |
|---|---|---|---|
| 1 | Sound control unit | 40 | MCase+HT1 |
| 2 | Central Electronic Module (CEM) A | 30 | MCase+HT1 |
| 3 | Central Electronic Module (CEM) B | 30 | MCase+HT1 |
| 4 | Fan for front climate | 40 | MCase+HT1 |
| 5 | Power operated tailgate | 25 | MCase+1 |
| 6 | Right front seat | 20 | MCase+1 |
| 7 | – | – | MCase+1 |
| 8 | – | – | MCase+1 |
| 9 | Right rear door module | 20 | Micro |
| 10 | Left rear door module | 20 | Micro |
| 11 | Front left door module | 20 | Micro |
| 12 | Safety module (ASDM) | 5 | Micro |
| 13 | Front right door module | 20 | Micro |
| 14 | – | – | Micro |
| 15 | 48 V battery control unit | 5 | Micro |
| 16 | Calculation module | 5 | Micro |
| 17 | Sun sensor | 5 | Micro |
| 19 | Climate | 7.5 | Micro |
| 20 | Interior motion sensors | 5 | Micro |
| 21 | Driver display | 5 | Micro |
| 22 | Buttons in the centre stack | 5 | Micro |
| 23 | Steering wheel | 5 | Micro |
| 24 | Start knob, Electric gear selector, Parking brake | 5 | Micro |
| 25 | Centre display | 5 | Micro |
| 26 | Connected services | 5 | Micro |
| 27 | TCAM antenna | 5 | Micro |
| 28 | Relay coils | 5 | Micro |
| 29 | Foot movement opening of the boot | 5 | Micro |
| 30 | Infotainment | 15 | Micro |
| 31 | On-board diagnostic port OBDII | 10 | Micro |
| 32 | – | – | Micro |
| 33 | Rear left headrest | 15 | Micro |
| 34 | Rear right headrest | 15 | Micro |
| 40 | Heated rear windscreen | 30 | MCase+1 |
| 41 | Left seatbelt pretensioner | 40 | MCase+ HT1 |
| 42 | Right seatbelt pretensioner | 40 | MCase+ HT1 |
| 50 | Humidity sensor, 48 battery generator and converter | 5 | Micro |
| 51 | Fuel pump | 20 | Micro |
| 52 | Cooling fluid pump | 7.5 | Micro |
| 53 | – | – | Micro |
| 54 | Air humidity sensor, Air particle sensor | 5 | Micro |
| 55 | – | – | MCase+1 |
| 56 | Windscreen washers | 25 | MCase+1 |
| 57 | – | – | MCase1 |
| 58 | – | – | MCase1 |
| 60 | – | – | Micro |
| 61 | – | – | Micro |
| 62 | – | – | Micro |
| 63 | – | – | Micro |
| 64 | Blind spot information (BLIS) | 5 | Micro |
| 65 | – | – | Micro |
| 66 | Front radar | 5 | Micro |
| 67 | All Wheel Drive (AWD) | 15 | Micro |
| 68 | Exhaust system | 5 | Micro |
| 69 | – | – | Micro |
| 70 | – | – | Micro |
| 71 | Air bags and seatbelt pretensioners | 5 | Micro |
| 80 | Rear windscreen wiper | 15 | Micro |
| 81 | Roof console | 20 | Micro |
| 82 | 360 parking camera | 5 | Micro |
| 83 | Interior lights, Rear view mirror, Rain and light sensors, Panels in rear doors and boot | 7.5 | Micro |
| 84 | Wireless charging | 5 | Micro |
| 85 | Driver support features | 5 | Micro |
| 86 | – | – | Micro |
| 87 | USB ports | 5 | Micro |
| 90 | – | – | Micro |
| 91 | – | – | Micro |
